Most fab shops own a pile of 4-1/2 inch angle grinders, and every welder in the shop grabs one for the small jobs. Then a 20-foot I-beam needs surfacing, or a plate edge needs a full bevel before a full-penetration weld, and the small grinders start burning out. That is the moment a large angle grinder earns its shelf space.

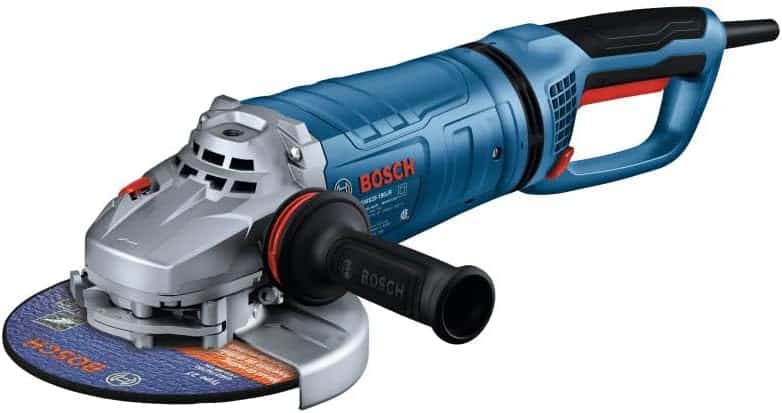

This Bosch GWS25-180JR review covers our pick for the best all-around large angle grinder. The Bosch GWS25-180JR 7 inch large angle grinder combines high performance and comfort for tough grinding and cutting applications: a 15-amp motor, 8,500 RPM, a lock on trigger switch, and a rotatable main handle.
If you are moving up to a large angle grinder, or you prepare metal for welding on structural stock every week, this is the machine we point people to first.
It is the 7-inch member of Bosch’s GWS25 large grinder line, sitting next to the 9-inch GWS25-230JR, and it sits second on our list of the best corded large angle grinders.
In this Bosch GWS25-180JR review, we will look at how it handles real grinding work, which features earn their keep on long shifts, and where it falls short.
Bosch GWS25-180JR Package Content & Technical Specifications
Bosch ships the GWS25-180JR as a bare large angle grinder kit: the tool, both wheel guards, and the mounting hardware. In the box you get:
Best All-Around 7-Inch Large Grinder
- Bosch GWS25-180JR 7 In. large angle grinder
- Type 27 grinding wheel guard
- Type 1A/41 cutting wheel guard
- Vibration control side handle
- Backing flange
- Lock nut
- Lock nut wrench
Technical Specifications
| Wheel Diameter: | 7″ (180 mm) |
| Power: | 15 A / 120 V AC |
| No-Load Speed: | 8,500 RPM |
| Spindle Thread: | 5/8″-11 UNC |
| Switch Type: | Lock-on trigger switch |
| Variable Speed: | No (soft start, restart protection) |
| Overload Protection: | Yes |
| Weight: | 10.9 lb |
| Length: | 20.3″ |
| Width x Height: | 5.3″ x 4.3″ |
| Warranty: | 1-year limited |
Pros
- 15-amp motor holds speed under heavy grinding load
- Soft start and restart protection included
- Lock-on trigger switch, exclusive to the JR and 230JR in this line
- Rotating main handle plus anti-vibration side handle
- 10.9 lb is light for the 7-inch class
Cons
- Single speed, 8,500 RPM or nothing
- No Type 11 cup wheel or Type 1 straight wheel support
- 15 amps needs a dedicated circuit and a thick extension cord
- Plastic gear housing feels less premium than all-metal rivals
- 1-year limited warranty, shorter than DEWALT’s 3-year coverage
How the Bosch GWS25-180JR Performs On The Job
After the package list and specifications, the real question is how the GWS25-180JR behaves when you lean on it. The numbers are strong on paper, so we will stick to what actually changes on the shop floor.
Power, cooling, and heavy duty work

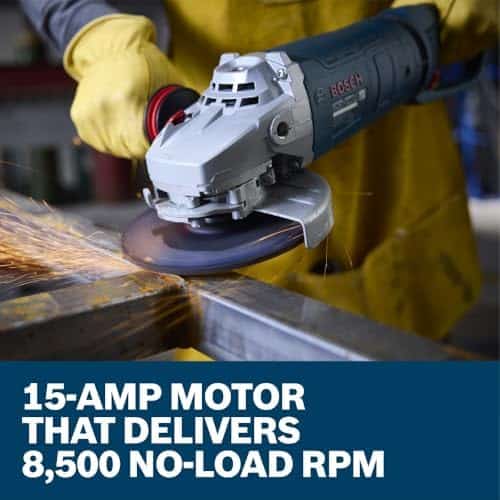

The motor is the story here. Fifteen amps at 120 volts is the practical ceiling for a corded angle grinder on a standard outlet, and the Bosch GWS25-180JR uses all of it. This high output motor delivers outstanding power and productivity at 8,500 no load rpm, the top of the large angle grinder class, which matters in tough grinding and the toughest applications on a fab ticket: surface speed does the cutting, and a 7-inch wheel spinning that fast pushes a Type 27/42 wheel through structural stock without stalling. The GWS25-180JR is built for demanding grinding and cutting applications, and professional grade material removal is where it shows.
Extension cords matter on the GWS25-180JR pulling 15 amps. Bosch’s chart calls for 14 AWG within 25 feet and 12 AWG out to 50. A long, thin cord turns a strong large angle grinder into a weak one through plain voltage drop.
Lock on trigger switch, handles, and long shifts
Three features make extended use bearable, and this large angle grinder has all three. The main handle of the Bosch GWS25-180JR rotates 90 degrees left or right: press the release button, turn until it clicks, and the rotatable handle puts the trigger where your wrist wants it, with optimal comfort in a range of cutting and grinding positions. Top grip for surface grinding, side grip for vertical cutting, and a mirrored setup for left-handed welders, so you can tailor the grinder’s orientation to the specific task at hand.

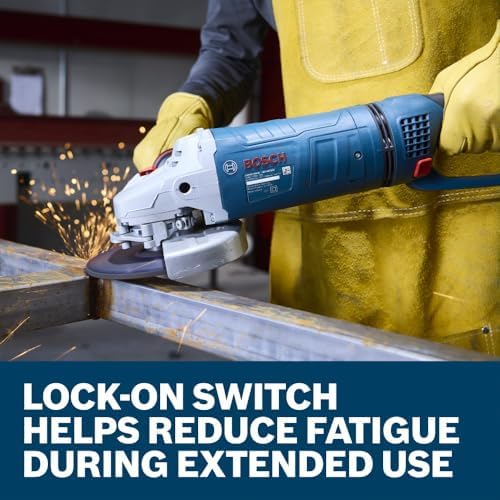

The tool uses a lock on trigger switch. Squeeze, slide forward until it clicks, and the trigger stays on during extended use without your finger clenching around it, which can significantly reduce user fatigue on long runs. That switch exists only on the JR and the 9-inch 230JR in this line; the plain GWS25-180PR large angle grinder does without it.
The side handle is the anti vibration auxiliary handle. It threads into either side or the top of the gear housing, and the manual is specific that it belongs on the guarded side of the tool, where reduced vibration means reduced fatigue, since the damping actively reduces strain during prolonged work and gives you superior control in long applications. Two hands on a 7-inch angle grinder is not optional advice. If you are new to large wheels, read up on grinder safety precautions before the first cut, because a stalled wheel unloads serious torque.
Metal cutting, grinding, and what it will not run
The manual’s application chart is refreshingly blunt. Out of the box, with the two included guards, the GWS25-180JR gives you Type 27 metal grinding and Type 41/1A metal cutting. Everything else is optional hardware: sanding discs and flap discs, wire wheels and cups, concrete cutting with the Type F masonry guard and a dry diamond wheel. The guards add versatile job site protection and both lock on with a clamping lever, no tools needed. Bosch also sells dust extraction hoods for cutting (19DC-7) and surface grinding (18SG-7), which connects the large angle grinder to a vacuum for concrete work.
Size limits on the GWS25-180JR are firm. Grinding wheels, cutoff wheels, sanding discs, flap discs, and wire wheels all cap at 7 inches, and wire cup brushes cap at 5. Thickness caps: 1/4 inch for grinding wheels, 1/8 inch for Type 27/42 cutting wheels, .125 inch for Type 1/41 cutoff wheels, 1 inch face width on wire wheels. Every accessory needs a speed rating at or above 8,500 RPM.
Two hard nos. No Type 11 cup wheels, and no Type 1 straight or die grinding wheels. The manual repeats both restrictions in bold type. For welders, the daily reality is simpler: beveling plate for full-penetration welds, stripping scale and spatter off structural, and the routine cutting jobs on angle and flat stock. The extra amps show up most on the bevels, where the wheel keeps its speed instead of bogging, and the large 7-inch disc covers more surface per pass to deliver faster material removal than a small grinder, hour after hour.
Frequently Asked Questions [F.A.Q]
Can the Bosch GWS25-180JR cut concrete?
Not out of the box, but yes with the right accessories. The application chart on the Bosch Power Tools website lists concrete cutting as optional duty for the GWS25-180JR: you add the Type F masonry cutting guard with footplate and a dry diamond wheel rated for the tool’s speed. For slab grinding with heavy dust, the 18SG-7 surface grinding hood connects to dust extraction. Type 11 cup wheels stay off the menu either way; the manual rules them out along with Type 1 straight wheels.
Does the Bosch GWS25-180JR have variable speed?
No. The GWS25-180JR runs at a single 8,500 no load rpm speed. Bosch’s own manual recommends a variable-speed grinder for polishing and warns about friction overheating on single-speed tools, so treat polishing as occasional duty rather than daily work.
What size wheels and brushes fit?
Seven inches is the ceiling on the GWS25-180JR for grinding, cutting, sanding, flap, and wire wheels. Wire cup brushes cap at 5 inches. Thickness limits run 1/4 inch on grinding wheels, 1/8 inch on Type 27/42 cutting wheels, .125 inch on Type 1/41 cutoff wheels, and 1 inch face width on wire wheels. The spindle thread is 5/8″-11.
How long is the Bosch power tools warranty?
One year, limited. The warranty page on the Bosch Power Tools website covers corded portable power tools against defects in material and workmanship for one year from the purchase date, with repair or replacement handled through Bosch factory service centers or authorized service stations. The manual also asks for a carbon brush inspection every two to six months on daily-use tools to maintain the motor’s peak efficiency, which is cheap insurance on a 15-amp motor.
Conclusion
If you weld for a living and buy only one large angle grinder, the Bosch GWS25-180JR is a defensible first choice. It is not the cheapest 7-inch machine and Hilti still owns the premium end, but nothing else in the class bundles soft start, restart protection, a lock on trigger switch, and a rotating handle at this price. The soft start feature gives a smoother startup by softening the initial impact of a high-torque start, and restart protection exists to prevent accidental tool activation after a power cut, a safer and more controlled operator experience overall. Amazon lists the Bosch GWS25-180JR at $265 at the time of writing, sold and shipped by Amazon itself, with early ratings at a perfect 5.0 from a small batch of reviews.
We compared it against five other machines in our best large corded angle grinders guide, including its 9-inch sibling and the torque-tuned Hilti AG 700-14D. If your work leans toward heavy surfacing rather than cutting, the Hilti justifies its premium. For everyone else, the GWS25-180JR is about the ideal power tool for tough grinding, metal cutting, and finishing tasks around a welding shop, with the robust construction and brush-care routine that keep a Bosch large angle grinder on the rack for years.
