Most shops solve the large-grinder question by buying two tools: a 7-inch for control work and a 9-inch for heavy stock removal.
This DEWALT D28499X review covers the tool that takes the other road, and the reason it sits in our best large corded angle grinders guide as the versatility pick.
One 15-amp body, two guards in the box, and it swings either wheel size
That flexibility is the whole story of this machine. Some things about it are excellent, like the rotating rear handle and a motor that holds speed under load. Others will annoy you on day one, mainly the sparse box contents.
In this DEWALT D28499X review I will cover what DEWALT actually ships, what the specs mean in practice, and the gaps you need to budget around.
DEWALT D28499X Package Content & Technical Specifications
DEWALT ships the D28499X with the tool, both guards, and the side handle, and nothing else. There is no backing flange, no clamp nut, and no wheel wrench. The mounting hardware that every other grinder in this class includes is sold separately here, and owners have noticed: the complaints on DEWALT’s own product page (1.6 stars from 5 reviews) are almost entirely about opening the box and finding no way to attach a wheel. If you buy this grinder, order the flange and clamp nut with it. The box contains:
Dual 7/9-Inch 5.3 HP Large Angle Grinder

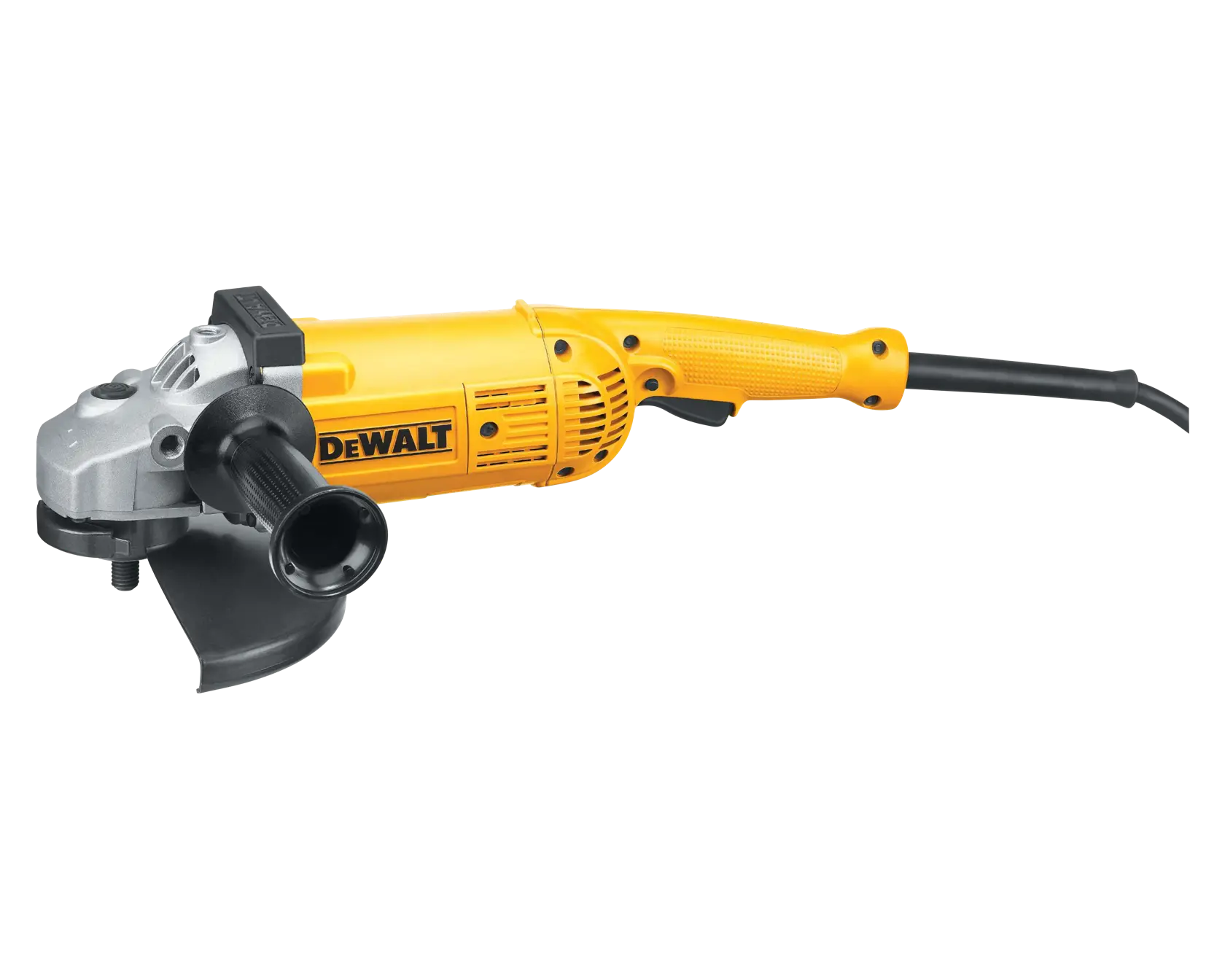

- DEWALT D28499X 7 in./9 in. angle grinder
- 7 in. (180 mm) Type 27 guard
- 9 in. (230 mm) Type 27 guard
- 5-position side handle
- Not included: backing flange 54339-00 and clamp nut N454941 (sold separately)
- Not included: wheel wrench 635261-00 (sold separately)
- Not included: Type 1/41 cutting guard (sold separately)
Technical Specifications
| Disc Size: | 7 in. / 9 in. (180 / 230 mm) |
| Motor: | 5.3 max HP |
| Amperage: | 15.0 A |
| No-Load Speed: | 6,000 RPM |
| Power: | 120V, AC/DC |
| Variable Speed: | No |
| Switch: | Trigger with lock-on and lock-off |
| Spindle Thread: | 5/8″-11 UNC (unthreaded accessories: 7/8″ / 22.2 mm arbor) |
| Weight: | 14.5 lbs (net tool) |
| Cord: | 2-wire double-insulated rubber “S” jacket |
| Keyless Guard: | Adjustable Type 27 (both sizes included) |
| Warranty: | 3-year limited, 1-year free service, 90-day guarantee |
Pros
- Runs both 7-inch and 9-inch wheels on one body
- 5.3 HP, 15-amp motor with overload protection
- Rear handle rotates to 0, 30, 60, or 90 degrees, left or right
- Five-position side handle
- Epoxy-coated field and armature resist abrasive grinding dust
- Keyless, tool-free guard adjustment
- Automatic turn-off brushes protect the commutator
- Low-profile gearcase for tight corners
- AC/DC motor works off generator and rectifier supplies
- 3-year limited warranty with 1-year free service
Cons
- No flange, clamp nut, or wrench included
- No soft start, 6,000 RPM hits immediately on trigger pull
- No variable speed, single fixed RPM
- 14.5 lbs and balanced toward the front for overhead work
- Type 1 cutting guard sold separately
DEWALT D28499X Review: How It Performs
The motor is the strongest argument for this tool. It draws a full 15 amps and produces up to 5.3 horsepower, turning at 6,000 RPM, which is the speed DEWALT specifies as optimal for 9-inch grinding wheels. Big wheels need lower RPM to stay within their rated surface speed, so the number is deliberate, not a weakness.
After a brief overview of the package content and technical specifications, let’s get to the central part of our review. Looking at specifications can be enough for some seasoned welders to tell if they are on the right track or if the machine suitable for them. However, you shouldn’t take words on paper for granted, so we will find out if things are the same in practice. Shortly said, yes, this is a good welder, but let’s look at each aspect.
Motor power and material removal
Two durability details matter for a grinder that lives in abrasive dust. The field and armature are epoxy-coated, which seals the windings against the grit that eventually shorts out unprotected motors.
And the carbon brushes shut the tool down automatically when they wear to their limit instead of arcing against the commutator. There is no brushless motor here; this is traditional brushed construction, and the auto-shutoff is DEWALT’s way of managing it.
The motor also runs on AC or DC power, an old-school touch that still matters if you work off certain generator or rectifier setups. And if you were comparing this against a cordless angle grinder, be clear about the trade: DEWALT’s 20V MAX battery platform buys portability, but nothing cordless sustains a 15-amp draw like this corded machine. This is a tool built for tough, sustained stock removal.
Handles and ergonomics
The rotating rear handle is a design choice no competitor in this class matches. Push the release lever and the back handle swings to 0, 30, 60, or 90 degrees, left or right of center. That means you can reposition the tool for vertical edge work without re-gripping or twisting your wrists into odd angles. Combined with the side handle threading into five different locations on the gearcase, you can build a grip configuration for almost any awkward position a fab job throws at you. It is a tough tool for any job.
The low-profile gearcase design reaches into corners and between gussets where fatter housings bounce off the work. At 14.5 lbs, the tool sits mid-pack for the class, though the weight sits forward of the grip. You get better leverage pressing down on horizontal surfaces, but overhead grinding tires you out faster. If a full day of surface grinding is on the schedule, follow the same grinder safety precautions you would with any 9-inch machine: guard in place, proper stance, and wheels rated above 6,000 RPM.
The gaps to plan around
Beyond the box contents, know what this grinder does not do. There is no soft start; pull the trigger and all 6,000 RPM arrive immediately, which will jerk the tool if you are not braced.
There is no variable speed, so the same RPM serves a 7-inch flap disc and a 9-inch hard wheel whether that suits the job or not.
DEWALT reserves electronic speed control and soft start for the DWE4597 and DWE4599N models in the same manual.
Wheel changes also demand attention to matching rules. The manual is explicit that wheel size must match guard size; a 7-inch wheel may not run under the 9-inch guard. And if you plan to cut rather than grind, the included Type 27 guards are not the right hardware. Type 1 cut-off work requires a closed Type 1/41 guard sold separately. On a 15-amp tool, the manual’s cord table calls for 14 AWG extensions up to 50 feet and 12 AWG up to 100 feet; at 150 feet DEWALT rates the tool not recommended.
Frequently Asked Questions [F.A.Q]
Can the DEWALT D28499X be used for cutting?
Yes, but not out of the box. Cutting requires a Type 1 wheel and a closed Type 1/41 guard, which is sold separately. With the included Type 27 guard, edge grinding and notching are limited to shallow cuts under 1/2 inch in depth, per the manual’s warnings.
What wheels and accessories fit the D28499X?
Any 7-inch or 9-inch wheel whose guard matches its size. Threaded accessories need a 5/8″-11 hub, and unthreaded wheels need a 7/8 inch (22.2 mm) arbor hole. Remember that the mounting flange and clamp nut do not ship with the tool.
Does it have soft start or variable speed?
No on both counts. The trigger brings the wheel to 6,000 RPM immediately. If those features matter, DEWALT’s DWE4597 and DWE4599N grinders in the same product family add electronic speed control and a one-second soft start.
What extension cord should I use?
For the 15-amp draw: 14 AWG up to 50 feet, 12 AWG up to 100 feet. Beyond 100 feet DEWALT does not recommend running the tool on an extension at all.
Conclusion
The D28499X is the pragmatic answer to owning two grinders. The motor is honest about its work, the handle system is the most adjustable in the large-grinder class, and the epoxy-coated windings and auto-shutoff brushes are the kind of unseen details that decide whether a grinder lasts five years or fifteen. The caveats are just as clear: budget for the flange, clamp nut, and wrench, accept a single fixed RPM with no soft start, and if your work leans toward finishing tasks a variable-speed model will serve you better. Home
Depot lists it at $234.49, and for structural fabrication, weld prep on heavy plate, and any shop that needs both wheel sizes without doubling its tool count, this is the machine we would put on the shelf. It is also a capable partner for bevel and joint cleanup when you prepare the joints before welding, eating scale and root pass spatter faster than any small grinder can. Check it on Amazon while you are deciding, and read our best large corded angle grinders comparison if you want to see how it stacks against the Bosch and Makita picks.
