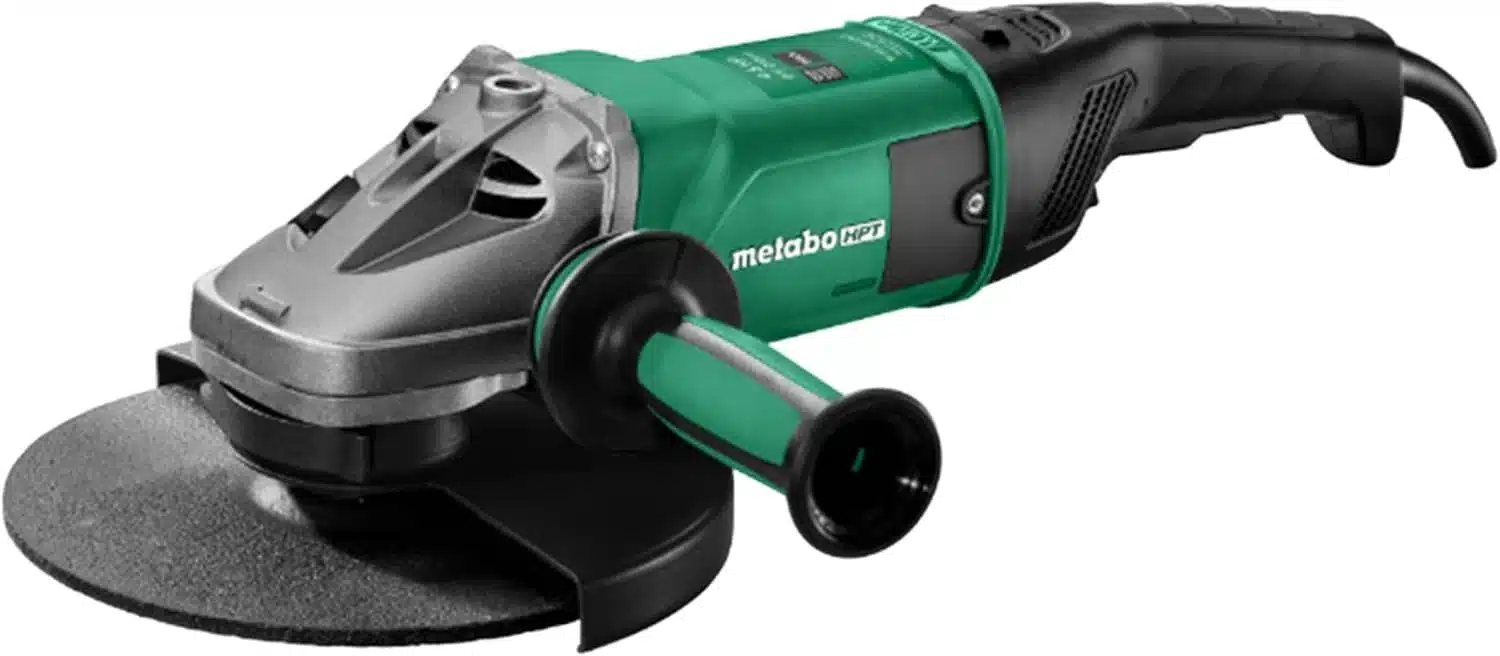

This Metabo HPT W 24-230 review covers the MVT 9-inch angle grinder, model 646467420. Its main attraction is the combination of vibration-damped handles and a rear grip that rotates for cutting.
For a fabricator preparing heavy steel, those are useful features to compare alongside power and weight in our best large corded angle grinders roundup.
I would consider it for regular weld preparation and surface grinding, rather than occasional garage repairs. This is a documentation-based review, not a hands-on test.
The assessment uses Metabo HPT’s product information, its operating instructions and the matching Acme Tools listing. Their specifications disagree in places; those differences are identified below rather than presented as measurements.
Metabo HPT W 24-230 MVT Package Content & Technical Specifications
The manufacturer’s package list names the grinder, guard and MVT side handle. A grinding wheel is not listed, so budget for the correct accessory and check the seller’s package before purchase.
Vibration-damped handles for large-scale grinding.
- W 24-230 MVT angle grinder
- Guard
- Metabo VibraTech side handle
Technical Specifications
| Model / part number: | W 24-230 MVT / 646467420 |
| Disc diameter: | 9 inches / 230 mm |
| Electrical supply: | 120 V; 15 A |
| Advertised motor power: | 2,400 W (manufacturer product page) |
| No-load speed: | 6,600 RPM |
| Speed adjustment: | Fixed speed; no variable-speed dial |
| Switch: | Trigger with safety lock and continuous-run lock-on |
| Spindle thread: | 5/8 inch – 11 UNC |
| Weight without cable: | 13.2 lb / 6.0 kg (manual); product page lists 12.8 lb |
| Power cord: | 13 ft (product page) |
| Main / side handle: | Rear rotates 90 degrees either way; three side-handle positions |
| Surface-grinding vibration: | 6.3 m/s²; uncertainty 1.5 m/s² |
| Country of origin: | Germany (Acme Tools listing) |
| Advertised warranty: | 3 years (Acme Tools listing); confirm applicable terms |
Pros
- MVT damping is built into the handle system.
- The rear handle rotates 90 degrees in either direction.
- Three side-handle positions accommodate different working orientations.
- The twist-proof guard adjusts without tools.
- Auto-stop carbon brushes protect against running with worn brushes.
Cons
- The manual lists 13.2 lb before adding the power cable.
- Fixed speed limits applications requiring slower rotation.
- Lock-on operation continues if the tool leaves your hands.
- Cutting requires the appropriate guard, not merely repositioning a grinding guard.
- The official package list does not include a grinding wheel.
Metabo HPT W 24-230 review: grinding performance and handling
Technical Specifications
The operating instructions specify 15 amps at 120 volts and a maximum no-load speed of 6,600 RPM. Metabo HPT advertises a 2,400-watt motor on the product page. That is a published power claim, not a measured continuous output from our own test. Neither figure establishes how quickly it will remove a particular weld.
This 9-inch size suits open surfaces and larger stock in industrial fabrication. It takes more room to position than a small angle grinder, so I would keep a compact tool for tight corners. Choose accessories rated for at least the grinder’s maximum speed, with compatible dimensions, mounting hardware and guard. Plain-bore abrasive discs fit between flanges; the spindle thread does not mean every disc needs a threaded hub.
For rough grinding, the manual specifies a working angle of 30 to 40 degrees and even movement across the surface. For cutting, it warns against excessive pressure, tilting and side-to-side movement. The machine is intended for dry work with suitable accessories; it is not a wet grinder.
Power and wheel selection for heavy work

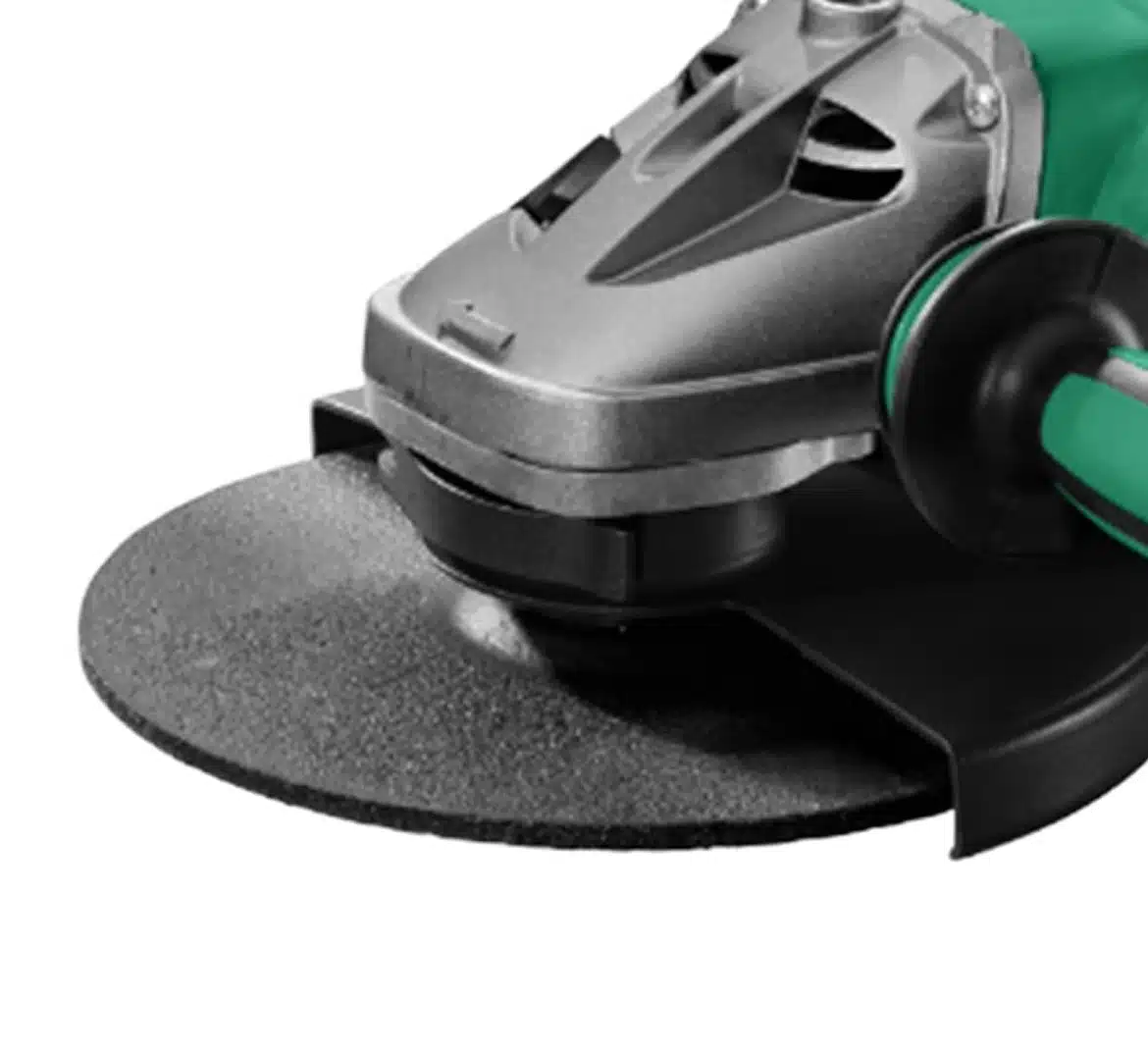

MVT means Metabo VibraTech. The manufacturer describes integrated damping and a vibration-reducing side handle, and advertises a reduction of up to 60%. That is the brand’s claim, not a result from our testing or proof of superiority over a particular Bosch, Makita or Milwaukee model.
The manual provides a more useful comparison point: surface-grinding vibration of 6.3 m/s², with uncertainty of 1.5 m/s². It lists disc-sanding vibration below 2.5 m/s². These are declared emission values under EN 62841, not a promise of safe all-day exposure or a measured percentage reduction in fatigue. Accessories, working conditions and operating time affect exposure.
For a shop doing repeated grinding, I would compare those figures and handle arrangements before treating more motor power as the only upgrade. Follow the manual’s advice on breaks and protective measures. Damping does not replace sensible exposure management.
What MVT vibration control can tell you

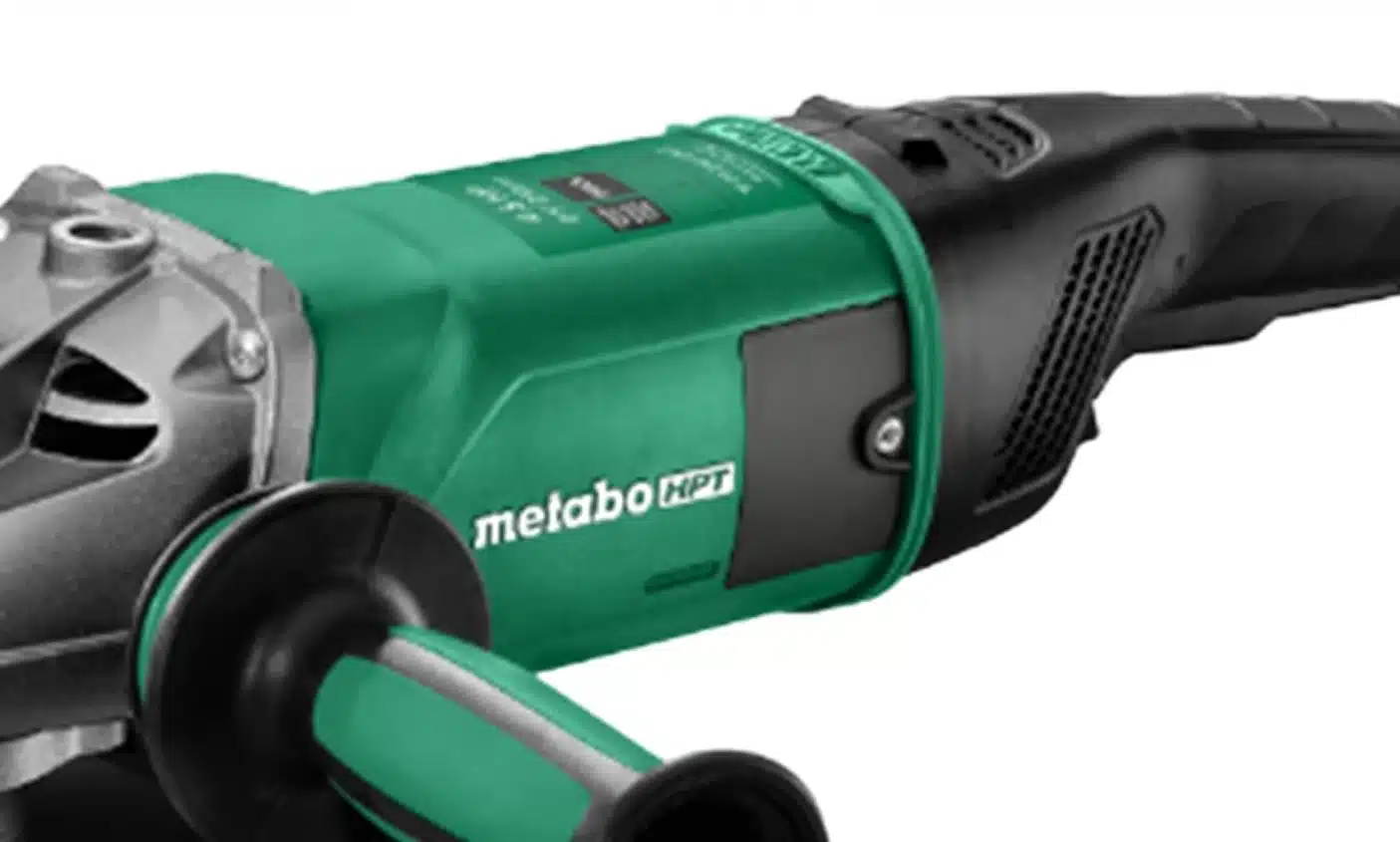

The long rat-tail grip runs behind the motor housing. Press its adjustment button to rotate the main handle 90 degrees either way, then check that it has engaged before use. The three-position side handle gives another way to suit the grip to the work. Keep both hands on the provided handles.
The tool-free, twist-proof guard is a useful adjustment feature, but cutting and grinding require the appropriate guard for the accessory. Unplug before changes, keep the closed guard section toward the operator, and inspect the wheel before starting. Our guide to safe grinder setup and wheel checks covers the wider precautions.
The manual calls the control a trigger switch with a sliding safety lock. Lock-on permits continuous running, including if the machine is forced out of your hands. Switch it off after unplugging or a power cut. The safety lock should not be confused with electronic restart protection. Auto-stop carbon brushes and the manufacturer’s dust-protection design also do not remove the need to clean the ventilation openings.
Frequently Asked Questions [F.A.Q]
Is the W 24-230 MVT variable speed?
No. It has a fixed 6,600 RPM no-load rating. MVT describes vibration control, not an adjustable speed system. Choose a different tool for work requiring reduced speed.
How much does this grinder weigh?
The manual’s W 24-230 column lists 13.2 lb without the mains cable; the product page lists 12.8 lb. I would plan around the manual’s figure. The discrepancy remains unresolved, so neither is presented as our measured weight.
Does it have a paddle switch or restart protection?
The manual describes a trigger with a safety lock and lock-on operation. Do not assume automatic restart protection: it specifically instructs you to switch off after a power interruption. Press and release the trigger to stop continuous operation.
What warranty should I expect?
Acme Tools lists three years for part 646467420, while the Amazon technical table inspected during research stated one year. The manufacturer’s individual-tool warranty list did not name this exact SKU. Confirm coverage for your purchase and keep the receipt.
Conclusion
I would shortlist the W 24-230 MVT for buyers who need a large corded grinder with adjustable grips and published vibration data. Its weight and fixed speed make it a less suitable choice for small repairs or delicate finishing. Compare the current price, guard package and warranty before you buy. The documented handling features support that shortlist; they do not establish a fastest-cutting or lowest-vibration winner.
