The Miller T94i-R PAPR system pairs the T94i auto-darkening welding helmet with a belt-mounted HEPA blower, and it is the airflow-focused pick in our best PAPR welding helmet guide. Miller is one of the three names that dominate the PAPR conversation alongside Optrel and 3M, and this kit, stock number 264575, is their premium package.
That sounds like marketing copy until you separate what Miller actually built from what the spec sheet pushes. The welding helmet side is a heavily reworked T94i: a 9 sq. in. ClearLight lens, four arc sensors, an X-Mode that ignores sunlight, and a huge integrated grind shield.
Bolted to that is a 2.2 lb blower feeding air through a six-vent Dualtec manifold instead of a single outlet, with dual air speeds and two batteries in the box.
In this Miller T94i-R review I’ll cover what you get in the T94i-R PAPR kit, what the system does well, where it falls short, and who it makes sense for at this price.
Miller T94i-R Package Content & Technical Specifications

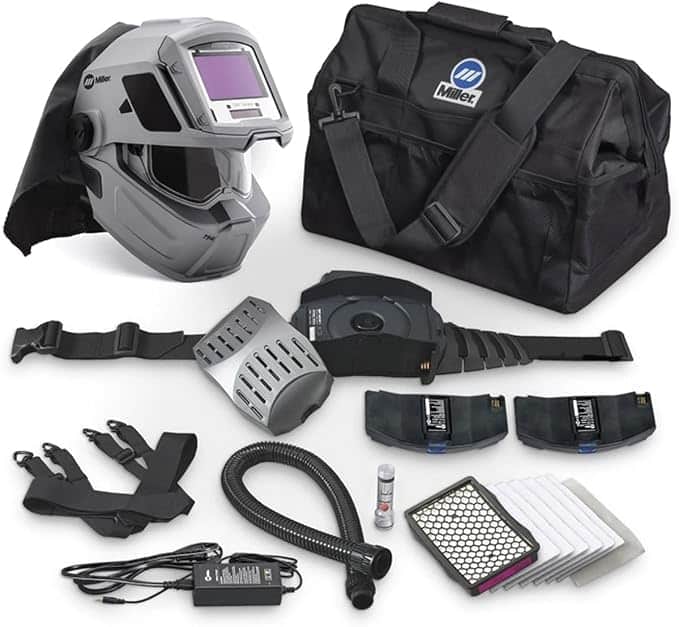

Miller sells the T94i-R PAPR system as stock number 264575, one complete package, and nothing needs to be bought separately on day one. The quick release belt makes for a seamless system on/off, one-handed even. The T94i-R variant in this kit is the one with the clear integrated grind shield; the T94-R sibling uses external grind control instead. The box includes:
Six-Point Airflow PAPR With X-Mode Arc Detection
- T94i-R welding helmet assembly with headgear and flame-resistant head seal
- PAPR blower assembly with HEPA filter and spark guard
- Six prefilters for the HEPA cartridge
- Breathing tube with flame-resistant cover
- Padded belt with integrated shoulder straps
- Two lithium-ion batteries with charger
- Flowmeter and tool bag
Technical Specifications
| Respiratory Standard: | NIOSH 42 CFR 84, HEPA (99.97%) |
| OSHA Classification: | Loose-fitting PAPR, APF 25 (no fit test) |
| Airflow: | 197+ lpm low / 215 lpm high, dual speeds |
| Lens Operating Modes: | Weld 8-13, Cut 5-8, Grind 3, X-Mode 8-13 |
| Arc Sensors: | 4 |
| Viewing Area: | 9 sq. in. (58 sq. cm) |
| TIG Rating: | 3 amps and up |
| Switching Speed: | 1/20,000 second |
| Battery Life: | 6-8 h low / 4-5 h high, 2 batteries |
| Charging Time: | 3 hours (500 cycles per battery) |
| Blower Weight: | 2.2 lb (1.0 kg) |
| Helmet Warranty: | 3 years lens / 1 year blower (True Blue) |
Pros
- Dualtec six-point airflow with targeted air placement you can aim away from eyes and nose
- X-Mode electromagnetic arc detection ignores sun and shop lights
- Two batteries included with no memory retention, so one is always on the charger
- Big 44 sq. in. clear grind shield for welding and other tasks
- Lightest blower in its class at 2.2 lb
- No fit test required under the loose-fitting OSHA classification
- ClearLight lens with accurate color in the light and welding states
- HEPA filtration against hex chrome, zinc oxide, and lead fumes
- Integrated shoulder straps and quick release belt design
- Audible and vibrating alarms for noisy environments
Cons
- Premium price, thousands of dollars
- Settings live inside the helmet, awkward to reach
- Headgear adjustment is fiddly on a PAPR conversion
- High-speed battery life drops to 4-5 hours
- No TH3 / EN 12941 rating on this US-market configuration
What the T94i-R System Is Like in Real Use

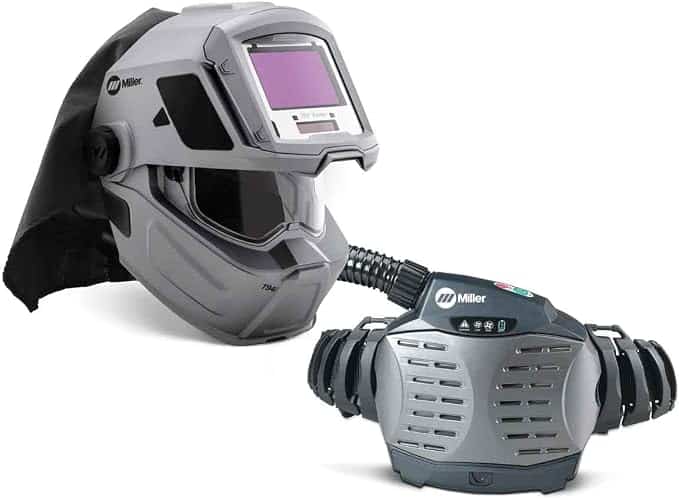

The headline feature of the T94i-R PAPR system is the air. Miller’s patent-pending Dualtec manifold spreads the blower’s output across six vents inside the welding helmet instead of dumping it from one spot. The system targets the body’s natural thermal regulation points, so the cooling relief lands where you actually feel it and works to minimize operator heat stress across a shift.
In practice that means you can steer air away from your eyes and nose. Anyone who has run a single-outlet PAPR knows the dry-eye problem, and this targeted air placement is the most adjustable air delivery on the market right now. Dual air speeds set the volume, six vents set the direction, and the air flow stays constant as the filter loads because the electronic control raises fan speed to compensate.
Dualtec airflow and alarms
The 215 lpm high speed is a strong figure for a 2.2 lb unit, and the low speed clears the 170 lpm NIOSH minimum for loose-fitting hoods with room to spare. When the battery gets low or the filter loads up and reduced airflow trips the warning, you get a beep and a buzz at the same time. The audible and vibrating alarms are built for noisy environments, where a beep alone gets lost.
Owner reports line up with the brochure here. One verified buyer on a dealer site ran low speed all day on galvanized work and finished the shift without draining the first battery. Another described the cooling inside the T94i-R PAPR helmet as having your head in air conditioning. The battery math backs them up: a lightweight lithium-ion battery pair, three hour charge cycle, so one is always ready.

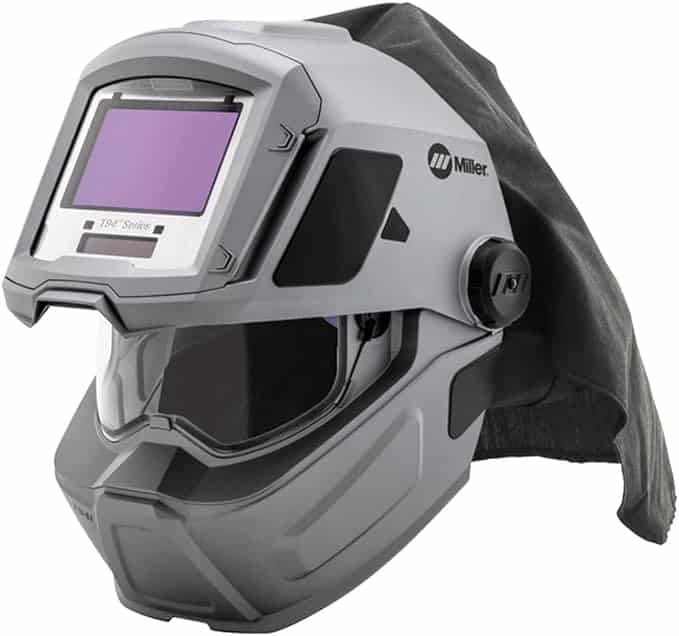

The helmet: ClearLight lens and X-Mode
The T94i-R welding helmet carries a 9 sq. in. ClearLight lens, four arc sensors, and four lens operating modes: weld (8-13), cut (5-8), grind, and X-Mode (8-13).
ClearLight lets more of the color spectrum through in the light and welding states, giving a brighter light state and clearer arc detail instead of green murk.
X-Mode senses the arc electromagnetically instead of relying only on light sensors, so sunlight and shop lighting won’t trip it, it keeps detecting the arc even when a sensor gets blocked, and it is the mode to reach for on outdoor low amp TIG. The digital lens controls live inside the helmet, with half shade lens adjustability for precise lens adjustment of shade, delay and sensitivity, and InfoTrack 2.0 tracking arc time and arc count.
Owner reviews single out that inside-the-helmet control placement as the system’s main ergonomic miss. Dust covers and an aluminum heat shield protect the AD lens from grime and heat, and the lens runs on a CR2450 coin cell rated for about 1,200 hours, so the lens battery outlasts years of daily welding. Optional shade 5.0 side windows maximize peripheral visibility; they are fixed shade, so you cover them when arc rays get annoying.
Neck comfort is the other half of the story, and Miller puts numbers on it. Their sheet claims 34% better balance, 27% less neck torque, and 55% less with the visor raised for grinding, compared against the previous T94i, minimizing operator fatigue over a full shift. The ergonomic four point flexible headgear carries an oversized pivoting back pad that avoids major pressure points, with seamless tilt, distance and tightness adjustments for a secure fit.
The flame-resistant washable head seal has an ultra soft outer cuff that enhances wear without causing skin irritation. On the body, the lightweight well balanced design puts the 2.2 lb blower on a quick release belt design with integrated shoulder straps distributing system weight toward your shoulders instead of your lower back, and the flexible tube material eliminates breathing tube snags when you lean into a weld, so the low-profile blower extends wearability without interfering with your surroundings. That is the lightest blower among the brand-name systems we cover, a full 1.4 lb under the Optrel and 3M units.
Grinding, respiratory protection, and fume coverage
This is where the T94i-R PAPR helmet earns its keep in a fab shop. The integrated clear grind shield covers 44 sq. in. with a 180° field of view, what Miller calls the industry’s largest integrated grind shield, increasing helmet-on time between welds.
You flip the visor up and you’re grinding under clear plastic with the respirator still running, for grinding and other non welding tasks, out of position applications included. If you want the background on why flip-up grind mode designs beat button modes, read our piece on the subject.
No swapping hoods mid-task, no breathing unfiltered galvanized dust. The T94i-R PAPR system’s HEPA filter is rated for 99.97% of airborne particulates and is listed against a specific fume list across various welding processes: hexavalent chromium from stainless, zinc oxide from galvanized, manganese, aluminum, nickel, iron oxide, cadmium, lead, and beryllium.
If you want the health background on those, our welding fumes symptoms article covers what each metal does to you. For most shops the more practical point is the OSHA classification: loose-fitting PAPR, assigned protection factor of 25, no fit test required. If your workplace mandates PAPR for compliance, the T94i-R PAPR system qualifies without the fit-testing appointment. Your employer may still need a medical evaluation on file for respirator use, but that rule applies to any respirator, not this one. Miller publishes the full spec sheet on millerwelds.com.
Frequently Asked Questions [F.A.Q]
Is the Miller T94i-R good for TIG welding?
Yes, with one qualifier. The T94i-R welding helmet lens is rated for TIG at 3 amps and up, and X-Mode helps in bright shops where light sensors misbehave. The qualifier is comfort: airflow you can aim away from your eyes matters more on long TIG runs than any sensor spec.
How long does the T94i-R battery last?
Between 4 and 8 hours depending on which of the dual air speeds you run: 6-8 hours on low, 4-5 on high, so up to eight hours at low speed. The lightweight lithium ion battery has no memory retention from frequent charging, tops up on a three hour charge cycle, and each battery is rated for 500 charges. Two ship with the T94i-R PAPR system, so with both in rotation you never wait on a charger.
Does the Miller T94i-R require a fit test?
No. The T94i-R is classified as a loose-fitting PAPR under OSHA rules, assigned protection factor 25, and Miller states no fit test is required. A medical evaluation before respirator use at work is a general OSHA requirement that applies to any respirator, not something specific to this welding helmet.
What is the difference between the T94-R and T94i-R?
The shell and blower are the same. The T94i-R PAPR kit has the clear integrated grind shield with the 180° view; the T94-R PAPR kit uses external grind control instead. Miller also sells a newer PAPR II line (stock 292754 and up) with an LCD blower display, three air speeds, and longer battery life; the 264575 kit reviewed here is the original PAPR generation.
Conclusion
The T94i-R PAPR system is expensive and a little awkward to adjust, and it’s still the system I’d point fabricators toward when airflow control and all-day neck comfort set the priority list. The six-point Dualtec delivery solves the dry-eye problem better than any competitor, the two-battery kit covers a full shift with zero charging downtime, and the 44 sq. in. grind shield means the welding helmet never comes off mid-task. Battery life trails the Optrel e3000x setup and the inside-the-helmet controls demand patience, but for shops that need OSHA-compliant HEPA protection with the most adjustable air delivery going, the Miller T94i-R justifies the outlay. It earns its spot in our best PAPR welding helmet guide, and the 4.2-star average across 600+ Amazon ratings suggests buyers agree.
