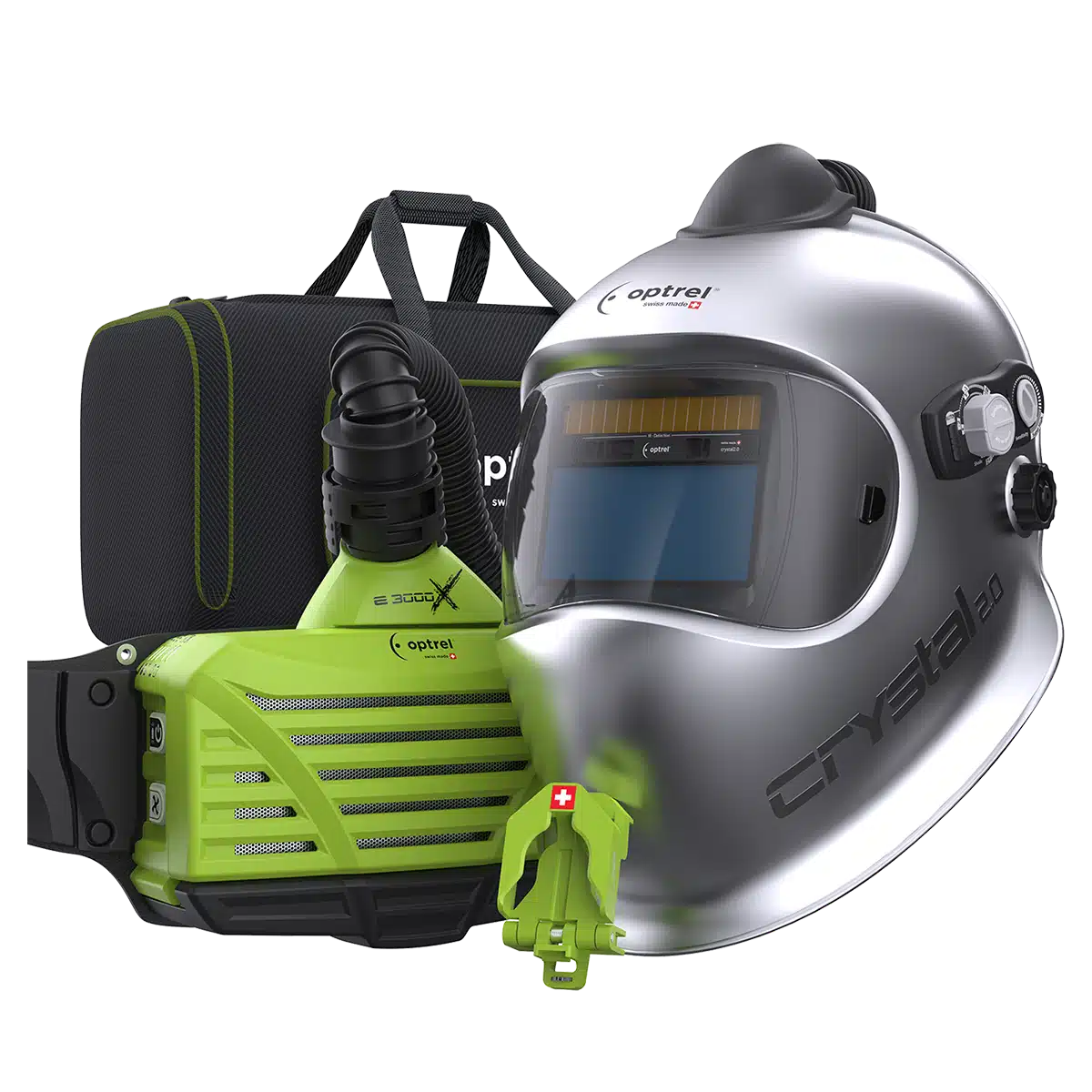

The Optrel Crystal 2.0 e3000x PAPR system pairs the Crystal 2.0 auto-darkening welding helmet with the e3000x belt-mounted blower, so you get lung protection and one of the clearest lens views in welding in a single package. It is the system we named best overall in our best PAPR welding helmet guide, and after long shifts on it I still think it earns that spot.
If you weld for a living, you know the two complaints that never go away: sore necks and smoke in your face. A heavy hood ends the week with headaches, and a standard mask does nothing about the fume.
A PAPR handles the smoke by pushing filtered air across your face all shift, no disposable mask required. The helmet side of this pair stays light at 18.7 oz, and the Crystal lens keeps the light state close to clear.
This is also one of the most expensive helmets on the market, so this review walks through what you actually get for the money, where it beats the competition, and where it does not.
Optrel Crystal 2.0 e3000x PAPR System Package Content & Technical Specifications
The kit arrives as a ready-to-weld package, so everything you need to start is in one box, including:
Premium True-Color PAPR System With TH3 Filtration
- Crystal 2.0 PAPR welding helmet with operating instructions and cleaning cloth
- e3000x blower unit (ATEX) with air hose and protective hose sleeve
- TH3P particle master filter with pre-filter
- Sparks guard (set of 2)
- 18-hour lithium-ion battery with charger
- Belt with parking buddy hook
- Storage bag
Technical Specifications
| Respiratory Standard: | EN 12941 TH3P (500× clean air) |
| Airflow Levels: | 170 / 210 / 240 L/min (3 levels) |
| Filter: | TH3P particle master filter + pre-filter + spark guard |
| Light State: | Shade 2.0, 31% light transmission |
| Dark State: | Shade 4-12 automatic (ShadeTronic) |
| ATEX Certification: | Zone 2 and 22 |
| Battery: | 14.8 V / 3.25 Ah lithium-ion, 500+ cycles |
| Runtime (particle filter): | 18 h (L1) / 16 h (L2) / 13 h (L3) |
| Runtime (gas + particle): | 8 h / 7 h / 6 h |
| Charging Time: | approx. 5 hours |
| Blower Weight: | 1195 g (with filter and belt, without battery) |
| Helmet Weight: | 18.7 oz (530 g) |
Pros
- TH3 protection with up to 500 times cleaner breathing air
- Shade 2.0 light state with true-color view
- Automatic shade 4-12 (ShadeTronic)
- Airflow sensor holds 170-240 L/min regardless of filter load
- ATEX Zone 2/22 certified for flammable environments
- 18-hour battery at level 1, five-hour charge
- Complete ready-to-weld package with bag and parking buddy
- 2-year warranty, extendable to 3 with registration
Cons
- Most expensive PAPR system in its class
- Replacement filters and yearly service add real running costs
- Gas filter option cuts battery runtime roughly in half
- Batteries are excluded from the warranty
- No side windows on the helmet
Optrel Crystal 2.0 e3000x Performance
Even though ARC200 can perform lift TIG welding, you don’t get a TIG torch to do it. This seems to be the case with all budget-friendly welders that don’t include torches or spool guns, so it shouldn’t surprise you. In addition, the TIG weld function is rather basic, so it really isn’t necessary unless you wish to practice some TIG.
After a brief overview of the package content and technical specifications, let’s get to the central part of our review. A spec sheet can tell you what a PAPR system claims to do, but the numbers only matter if they hold up through a full shift, so let’s look at how the e3000x performs where it counts: air quality, optics, and battery endurance.
Respiratory protection and airflow

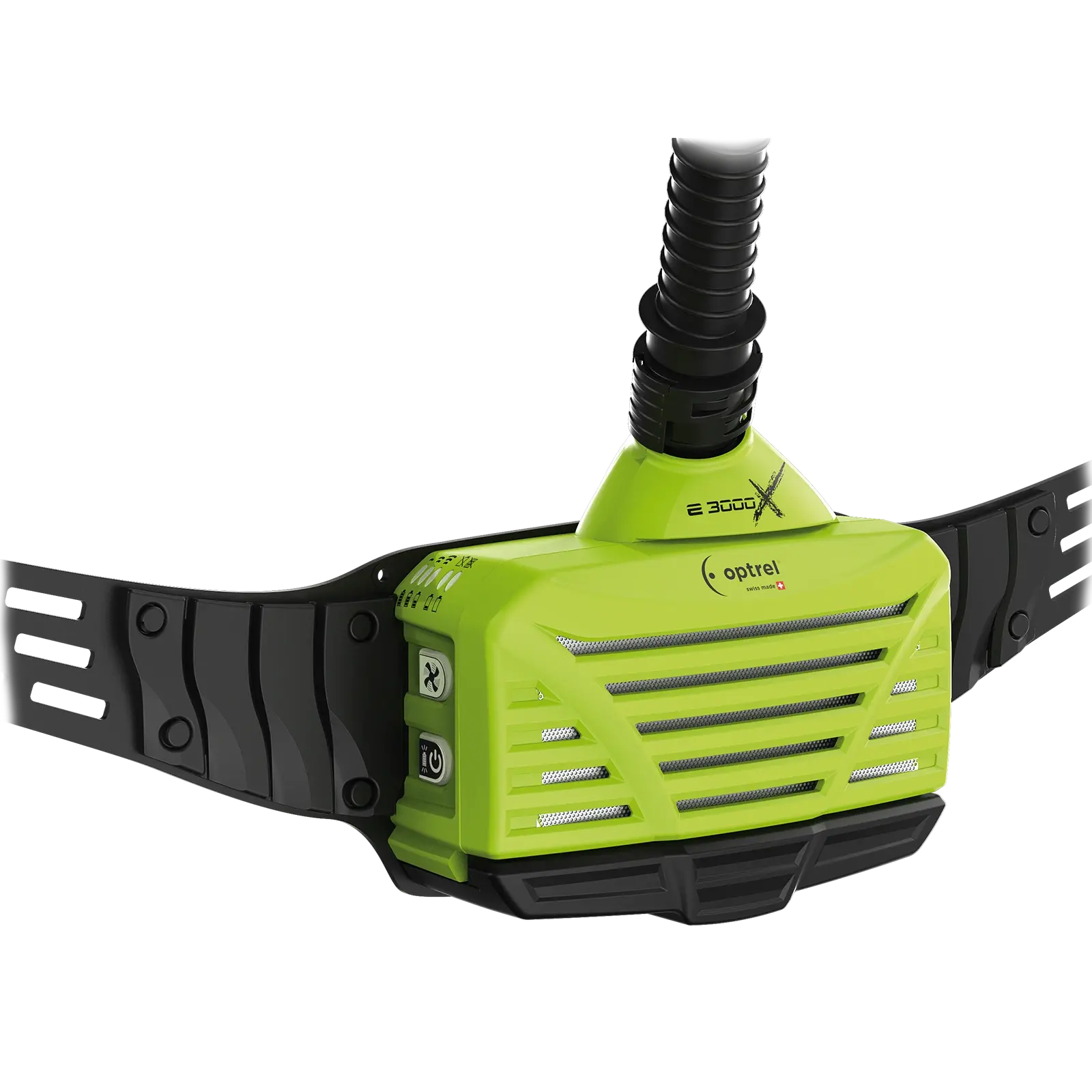

The e3000x blower is the heart of this system, and its numbers are better than most of the field. The TH3P particle filter captures smoke, dust, and aerosols down to the alveolar-penetrating range, which optrel says delivers up to 500 times cleaner breathing air than the ambient environment. That is how the user stays protected against particles in the breathing air through a full shift. In plain terms: hexavalent chromium from stainless work, zinc oxide fume from galvanized steel, and grinding dust all stay on the wrong side of the filter while your lungs get clean air. If you have ever knocked out a shift on galvanized and felt the metal fume fever the next morning, you know why welders care about welding fumes this much.
Airflow comes in three levels: 170, 210, or 240 liters per minute. A built-in flow sensor watches the actual air volume during operation and speeds the blower up when the filter loads up, so the flow you set is the flow you keep.
If anything drops below the safe minimum the unit alarms with a red LED and a beep, and the manual is blunt about what to do then: leave the hazard area first, ask questions later. The e3000x also carries optrel.com ATEX Zone 2 and 22 certification, so it is rated for areas where flammable gases, vapors, or dusts can appear, and the silencer accessory cuts operating noise by 6 dB, roughly half the perceived volume.
The shade 2.0 crystal lens technology and daily comfort
The helmet side of the package is the same Crystal 2.0 we reviewed separately, so I will keep this short and point you to the detailed Optrel Crystal 2.0 welding helmet review for the deep dive.What matters in the PAPR context is the shade 2.0 light state. Compared with the shade 3 or 4 idle state on most auto-darkening filters, walking the shop, positioning TIG tack welds, grinding between passes, and chip-hammering slag all happen through a sunglasses-dark lens.
The Crystal 2.0 rests at shade 2.0 with 31% light transmission and true-color rendering, so its light mode looks close to a pair of quality sunglasses. Through the lens you see the weld pool edge, the workpiece color, and your chalk lines with a high contrast view and realistic color perception, without flipping the hood up.
TIG welders at low amps feel the benefit most, since a dark idle lens swallows a faint arc and forces your head into awkward angles to see. I TIG weld most days, and the clarity is the reason I stopped flipping the hood up between tacks at all.
Battery life and running costs

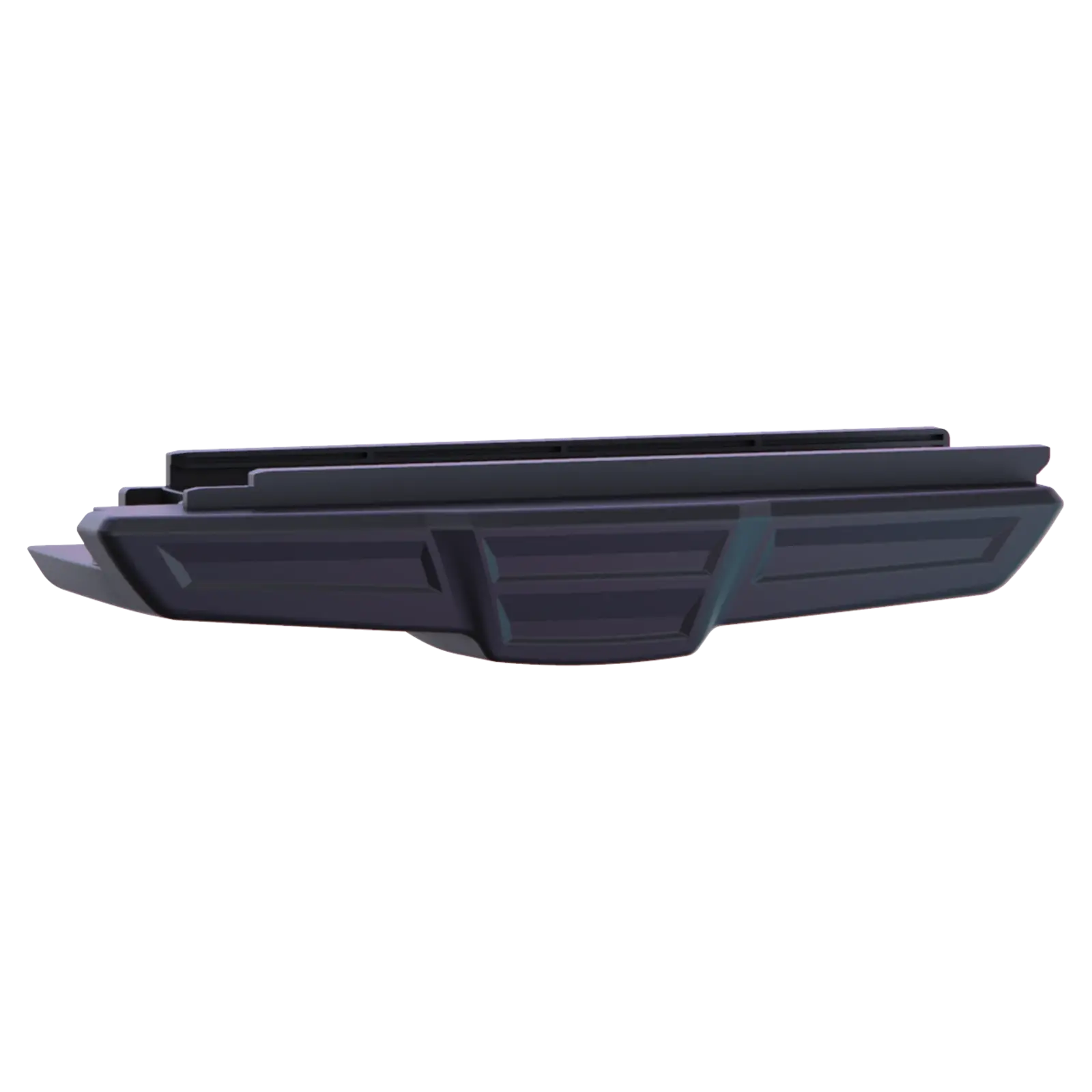

The 14.8 V, 3.25 Ah lithium-ion battery is good for 18 hours at the low airflow setting with the particle filter fitted, 16 hours at level 2, and 13 hours at level 3. With the optional gas filter stacked on, those numbers drop to 8, 7, and 6 hours. Charging takes about five hours, and the battery is rated for over 500 charge cycles, so a nightly charge covers any shift schedule you are likely to keep.
Running costs are where premium systems hide their teeth. The TH3P main filter is a wear item, the pre-filter is a consumable you should swap often to stretch the main filter, and the spark guard takes the abuse from grinding and cutting sparks so the pre-filter does not have to. Optrel also schedules a yearly service and a fresh seal between filter and blower at least once a year. None of that is optional if you want the TH3 rating to mean anything in year two.
Frequently Asked Questions [F.A.Q]
Is the Optrel e3000x compatible with other welding helmets?
No. The e3000x works only with PAPR-prepared optrel helmets: the sphere series shells (Crystal 2.0, Vegaview 2.5, e684), panoramaxx series, liteflip, clearmaxx, and the softhood. You cannot pair it with a standard Crystal 2.0 or any other brand’s helmet, because the hose connection, face seal, and airflow path are built as one system.
How long does the e3000x battery last?
With the standard particle filter, 18 hours at airflow level 1, 16 hours at level 2, and 13 hours at level 3. With the optional gas filter plus particle filter, expect 8, 7, and 6 hours respectively. Full charge takes about five hours, and the battery is rated for over 500 charge cycles.
What does TH3 mean on a welding PAPR?
TH3 is a protection class under EN 12941, the European standard for powered air respiratory protection with a hood or helmet. It is the highest class for this type of device and means the filtered air you breathe can be up to 500 times cleaner than the surrounding air, assuming a correct fit and maintained filters.
Is the Crystal 2.0 e3000x worth the money?
If welding is your trade, yes. The combination of TH3 filtration, the shade 2.0 light state, and ATEX certification does not exist everywhere at this level, and the two-year cover against manufacturing and material defects extends to three years when you register. If you weld occasionally in a clean garage, a mid-range auto-darkening helmet plus good ventilation and a fume extractor will do the job for a fraction of the cost.
Conclusion
The Optrel Crystal 2.0 e3000x earned its best overall pick in our PAPR guide, and its weaknesses all sit on the price tag. The TH3 filtration with automatic flow control protects your lungs all shift, the shade 2.0 Crystal lens gives you a light state almost no competitor matches, and the ATEX rating opens doors that uncertified systems cannot enter. The battery ladder, filter costs, and yearly service are real, but they are the cost of the protection actually working. For professional welders, pipe fitters running TIG root passes on pipe work all day, and anyone welding stainless or galvanized daily, this system pays for itself in lungs and years. For hobbyists it is overkill, and our PAPR comparison has budget options that will serve you better.
